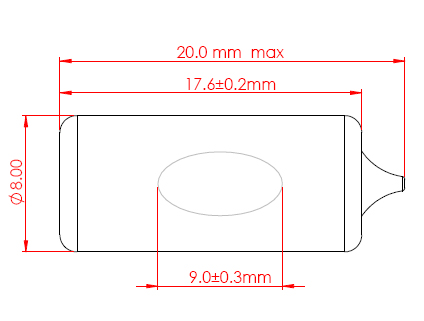

Speicifications
– barrel grinding, R=1375mm
– Polished finish
– Sensitivity 5.5’±1′ per 2mm bubble movement
Filling:
– Liquid n-Heptane(min 99/9% purity)
– Airbell 9.0±0.3mm at 20°C
Finish:
– Outside Glass surface to be free from scratches
– No finger prints
– No internal or external dust particles
Packing:
– Antistatic tape and reel, 200 pcs per reel
Inspection:
– 100% automated vision inspection for vial Length, bubble size and hysteresis.
Performance:
– Resolution < 1 arc second
– Hysteresis < 10 arc seconds
– Operating temperature range -20°C to 70°C
– Storage temperature range -40°C to 80°C
