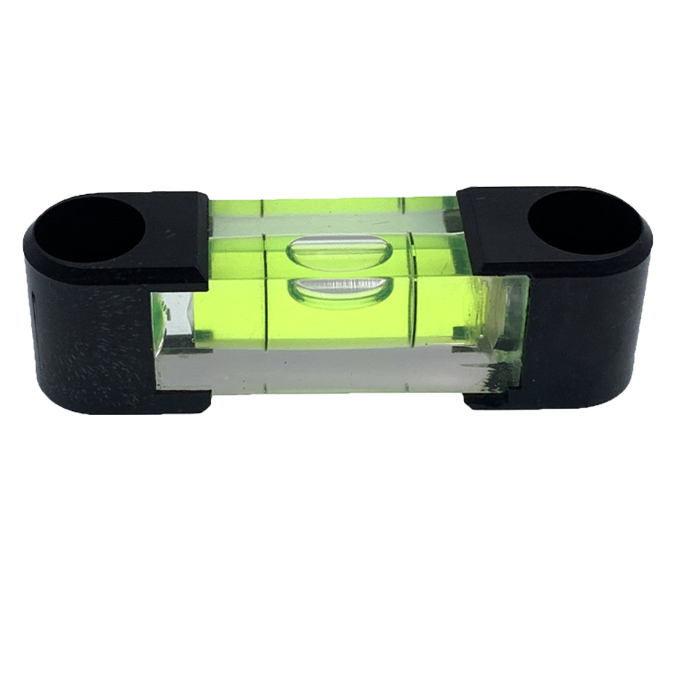

Datasheet(pdf 142.14 KB) PSOL/SF35- Acrylic screw on level, 55mm long, sensitivity 32’/2mm
Features
- High quality, high optical clarity plastic
- CNC machined bore
- Sensitivity 32’/2mm bubble movement
- Yellow/Green Filling liquid
Applications
- Instrument levelling
- Hand held tools requiring a screw on leve

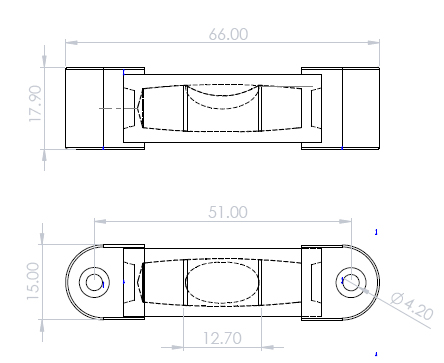

Product Specification
| Length | 55 | mm |
| Width | 15 | mm |
| Height | 17.5 | mm |
| Sensitivity Per 2mm | 32 | minutes |
| Bubble Size | 11.5 | mm |
| Line Spacing | 12.8 | mm |
| Line Colour | Black | – |
| Liquid Colour | Yellow/Green | – |
| Backing Colour | Clear | – |
