The LV/W11 is the perfect measuring instrument to align machines and – together with the software – for the measurement of straightness, flatness, squareness as well as machine geometry and machine rotations. LV/W11 combines high accuracy (0.001mm /m = 0.2 arcsec) with the robustness required in the machine tool business. The user-friendly software enables users to achieve the required accuracy of their machine and to record it afterwards.
A Testing SYSTEM normally consists of two LEVEL measuring instruments. Depending on the application – e.g. for the alignment of machines – a Level Sigma display unit is required. If the instruments are used together with the software.

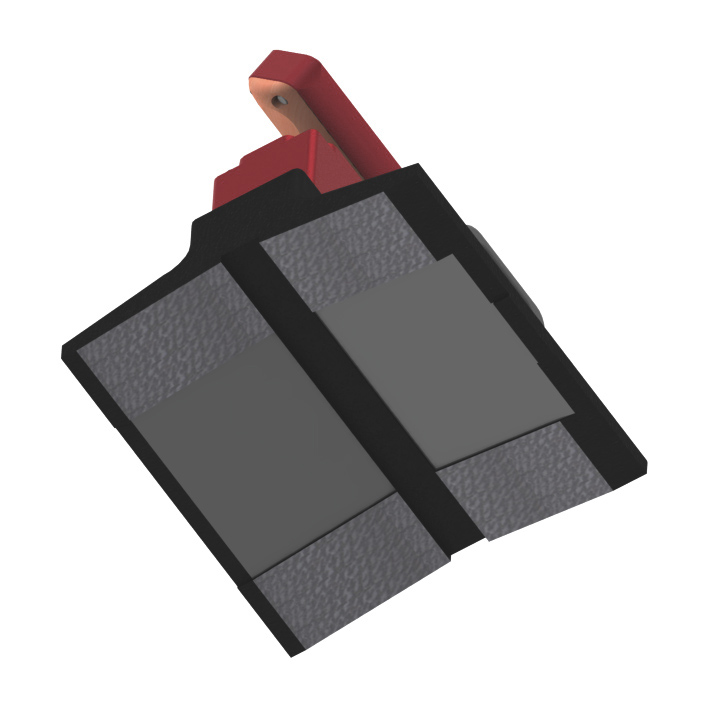

• Horizontal measuring base
• Prismatic contact faces for shafts with Ø 50 … 550 mm
• Cast iron
• Contact faces hand scraped
• Other surfaces spray painted
