LV-W11 DataSheet(pdf 5.30 MB) LVW11 HMbase-Digital Engineering Levels,0.001mm/m
Features
- * Sensitivity: 0.001mm/m 0.2 arcsec
- * Measuring range: ± 20mm/m
- * Limits of error: Mw <= 0.5 ME
- * ME =full-scale
- * Mw = measured value Mw > 0.5 ME max.0.01( 2| MW| – 0.5 ME)
- * Temperature error (/°C) : max 0.002mm/m
- * Me = full-scale : Mw > 0.1 ME max 0.002mm/m
- * Response time : 5 sec
Applications
- * MONITORING A GENERATOR IN A POWER STATION
- * CALIBRATION OF SURFACE PLATES (FLATNESS)
- * MACHINE TOOLS / CHECKING OF ROTATION ERRORS
- * MEASUREMENT OF THE ABSOLUTE POSITION OF A Guideway
- * LARGE GRINDING MACHINE WITH FLAT GUIDEWAYS
- * FLATNESS MEASUREMENT ON A CIRCULAR SUPPORT OF A TURN TABLE
- * MEASUREMENT OF A CIRCLE ON A ROUND TABLE OF A GRINDING MACHINE
- * MEASUREMENT OF PITCH AND ROLL ON A GRINDING MACHINE
- * MEASUREMENT OF THE RECTANGULARITY OF THE HEAD OF A ROUND TABLE GRINDING MACHINE
- * DAM MONITORING
- * EFFICIENT CHECKING OF THE ALIGNMENT OF A MACHINE / CASE 1 + 2
- * MEASURING – CALIBRATION / FLATNESS MEASUREMENT, ANGLES

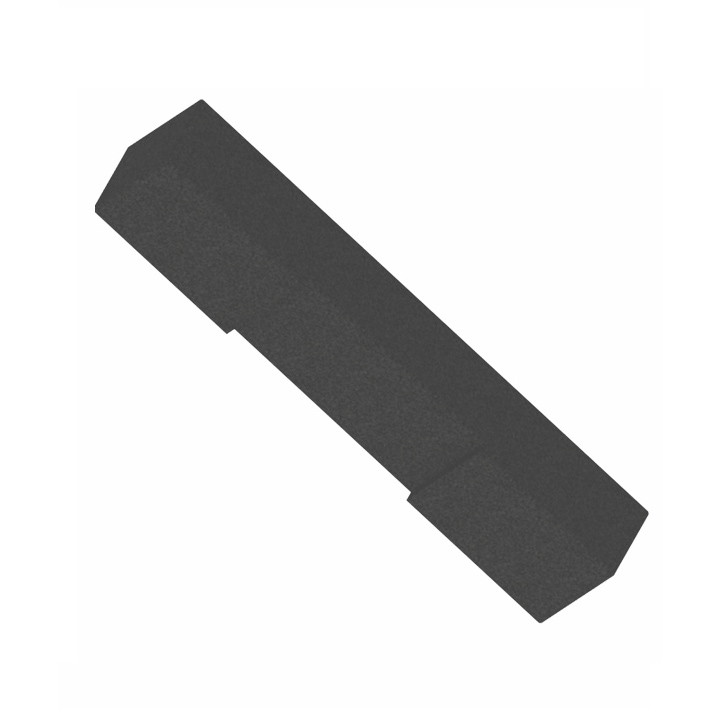

Product Specification
| A | B | C | H | Weight kg | P/N |
| /MM | /MM | /MM | /MM | Granite | |
| 200 | 50 | 80 | 35 | 1.1 | HMbase200 |
| For step length 90…190 mm, considering a borderzone typical step length 150 … 190 mm |
|||||
| 250 | 50 | 100 | 40 | 1.6 | HMbase250 |
| For step length 110…240 mm, considering a borderzone typical step length 200 … 240 mm |
|||||
| 500 | 50 | 200 | 80 | 6 | HMbase500 |
| For step length 210…490 mm, considering a borderzonetypical step length 450 … 490 mm |
|||||
